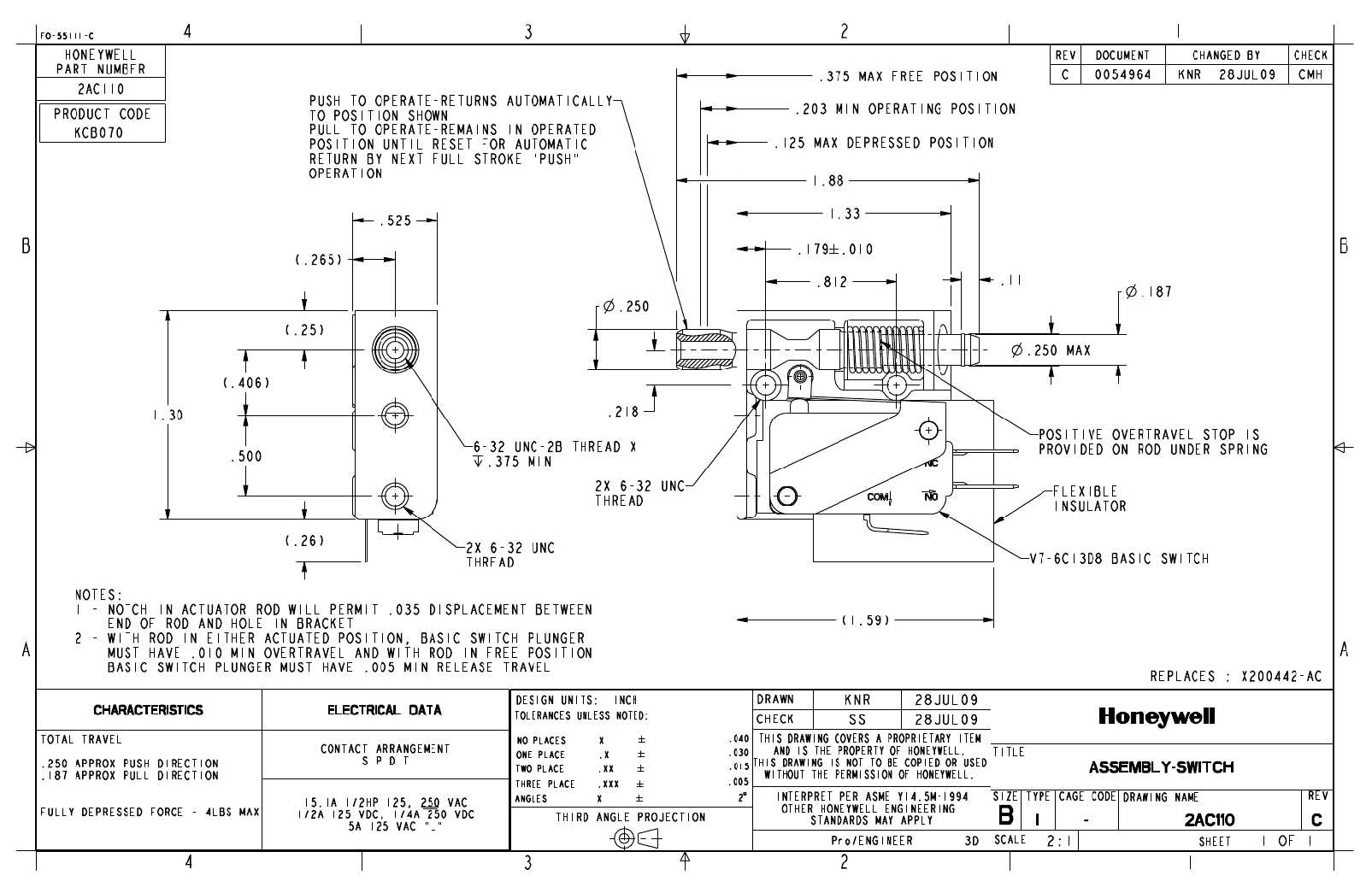

FO-55111-C
4
3
2
1
HONEYWELL
REV
DOCUMENT
CHANGED BY
CHECK
PART NUMBER
2AC110
PRODUCT CODE
PUSH TO OPERATE-RETURNS AUTOMATICALLY
TO POSITION SHOWN
.375 MAX FREE POSITION
.203 MIN OPERATING POSITION
C
0054964
KNR
28JUL09
CMH
KCB0701
PULL TO OPERATE-REMAINS IN OPERATED
POSITION UNTIL RESET FOR AUTOMATIC
RETURN BY NEXT FULL STROKE "PUSH"
OPERATION
.525
.125 MAX DEPRESSED POSITION
1.88
1.33
B
( .265 )
.179 #.010
.812
.11
.187
B
.250
( .25 )
.250 MAX
( .406 )
1.30
.218
NOTES:
.500
( .26 )
6-32 UNC-2B THREAD X
.375 MIN
2X 6-32 UNC
THREAD
2X 6-32 UNC
THREAD
POSITIVE OVERTRAVEL STOP IS
PROVIDED ON ROD UNDER SPRING
FLEXIBLE
INSULATOR
V7-6C13D8 BASIC SWITCH
1 - NOTCH IN ACTUATOR ROD WILL PERMIT .035 DISPLACEMENT BETWEEN
END OF ROD AND HOLE IN BRACKET
( 1.59 )
A
2 - WITH ROD IN EITHER ACTUATED POSITION, BASIC SWITCH PLUNGER
MUST HAVE .010 MIN OVERTRAVEL AND WITH ROD IN FREE POSITION
BASIC SWITCH PLUNGER MUST HAVE .005 MIN RELEASE TRAVEL
REPLACES : X200442-AC
A
CHARACTERISTICS
ELECTRICAL DATA
DESIGN UNITS: INCH
TOLERANCES UNLESS NOTED:
DRAWN
CHECK
KNR
SS
28JUL09
28JUL09
TOTAL TRAVEL
.250 APPROX PUSH DIRECTION
.187 APPROX PULL DIRECTION
CONTACT ARRANGEMENT
S P D T
NO PLACES
ONE PLACE
TWO PLACE
THREE PLACE
X
.X
.XX
.XXX
#
#
#
#
.040
.030
.015
.005
THIS DRAWING COVERS A PROPRIETARY ITEM
AND IS THE PROPERTY OF HONEYWELL. TITLE
THIS DRAWING IS NOT TO BE COPIED OR USED
WITHOUT THE PERMISSION OF HONEYWELL.
ASSEMBLY-SWITCH
FULLY DEPRESSED FORCE - 4LBS MAX
15.1A 1/2HP 125, 250 VAC
1/2A 125 VDC, 1/4A 250 VDC
5A 125 VAC "L"
ANGLES
X #
THIRD ANGLE PROJECTION
2 $
INTERPRET PER ASME Y14.5M-1994
OTHER HONEYWELL ENGINEERING
STANDARDS MAY APPLY
Pro/ENGINEER
3D
SIZE TYPE CAGE CODE DRAWING NAME
B I - 2AC110
SCALE
2:1
SHEET
1
REV
C
OF 1
4
3
2
1
